The Standard 4x5

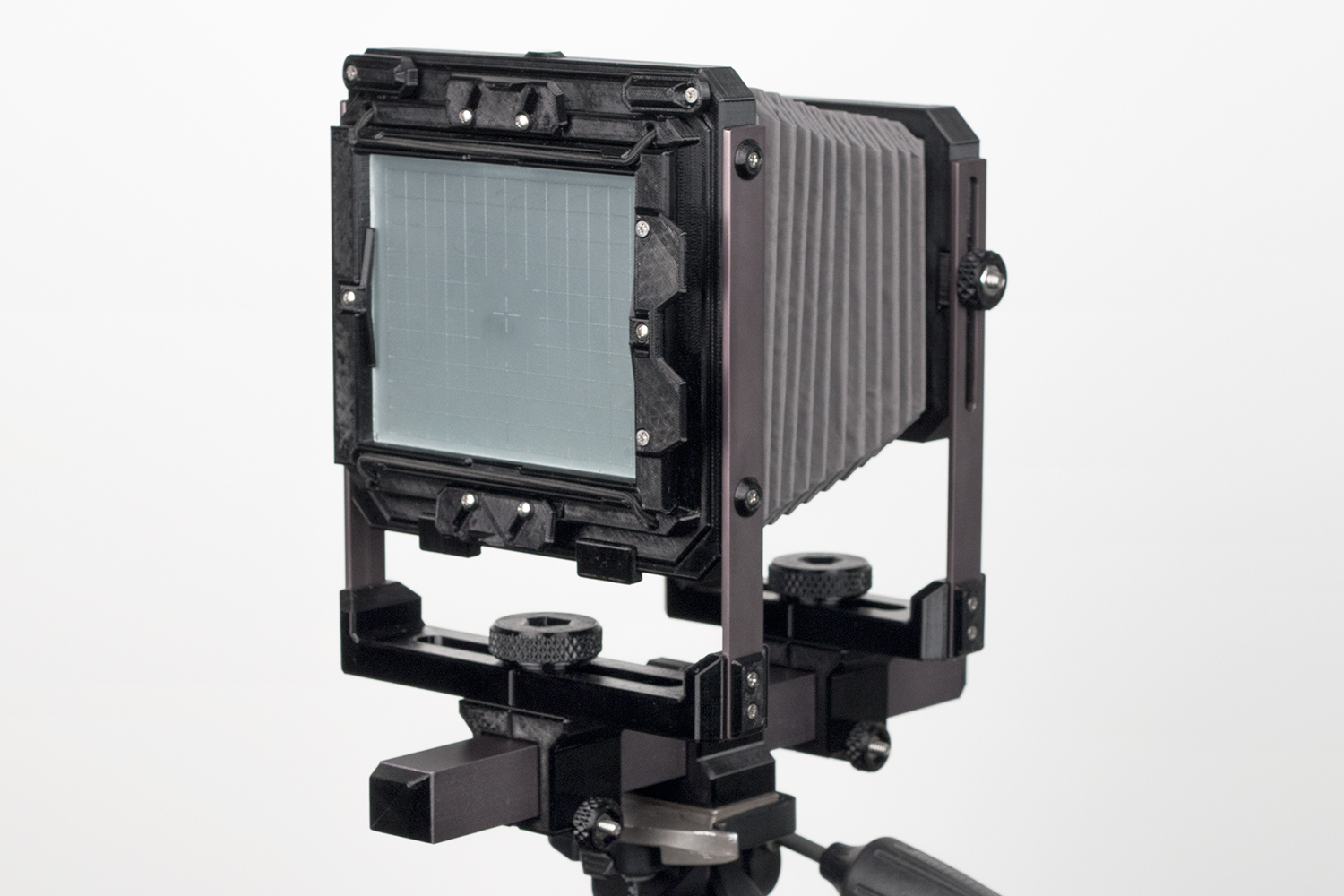

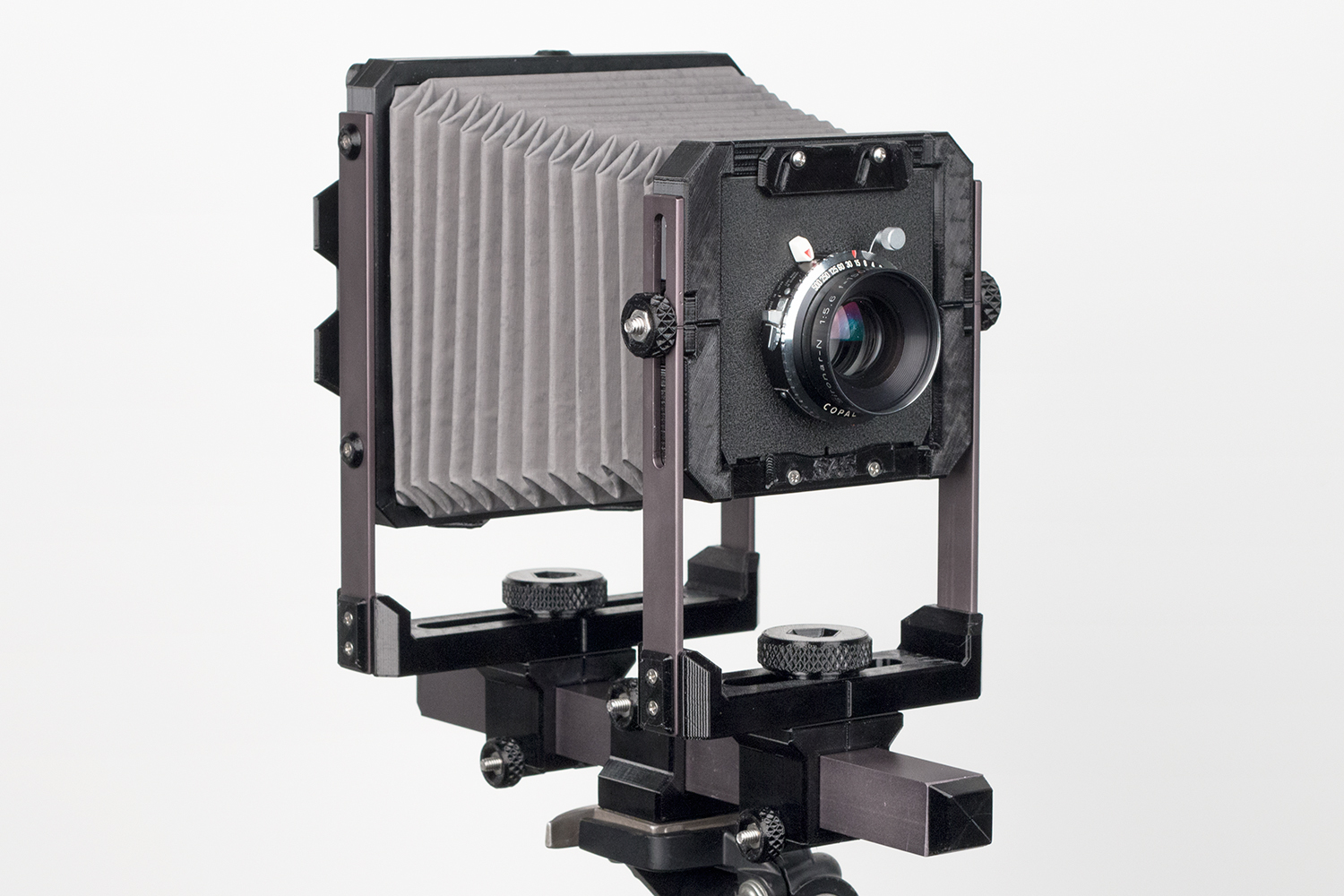

Main Camera Image

Specs

  • Accepts Linhof style lens boards
  • Approximately 100mm to 300mm lenses accepted*

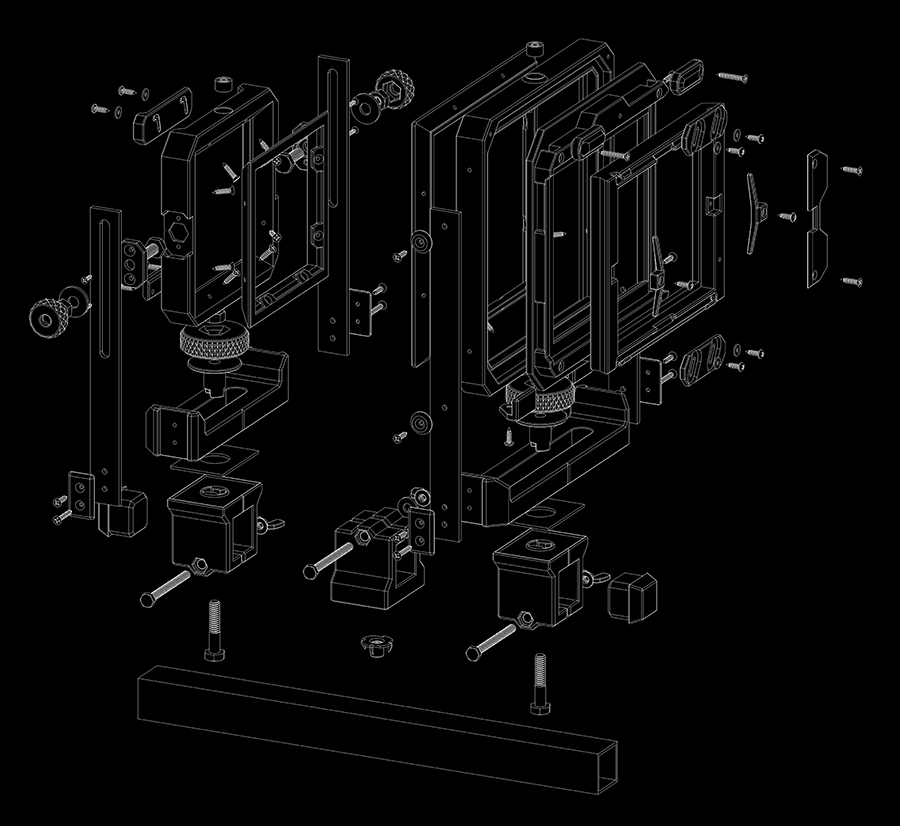

  • Modular design allows for easy modifications and quick part replacements (which will be available later through our website)
  • Front Standard Rise/Fall (35mm/45mm), Shift (32mm each way), Swing and Tilt
  • Rear Standard Shift (55mm each way) and Swing
  • All Swing and Tilt movements are only limited by the bellows
  • Only 2 pounds (0.91kg)
  • Bellows constructed in-house - available in Black and Gray
  • 3d Printed using a fully recyclable PETG plastic filament which is very durable and dimensionally stable
  • Anodized aluminum components and Stainless Steel hardware
  • Ground glass can be quickly removed to use various graflok backs
  • Lens and lensboard are not included.

* If the tripod mount is moved in front of or behind the standard mounts, focal lengths down to about 60mm can be used, especially with a recessed lensboard. Some images of this can be found HERE.

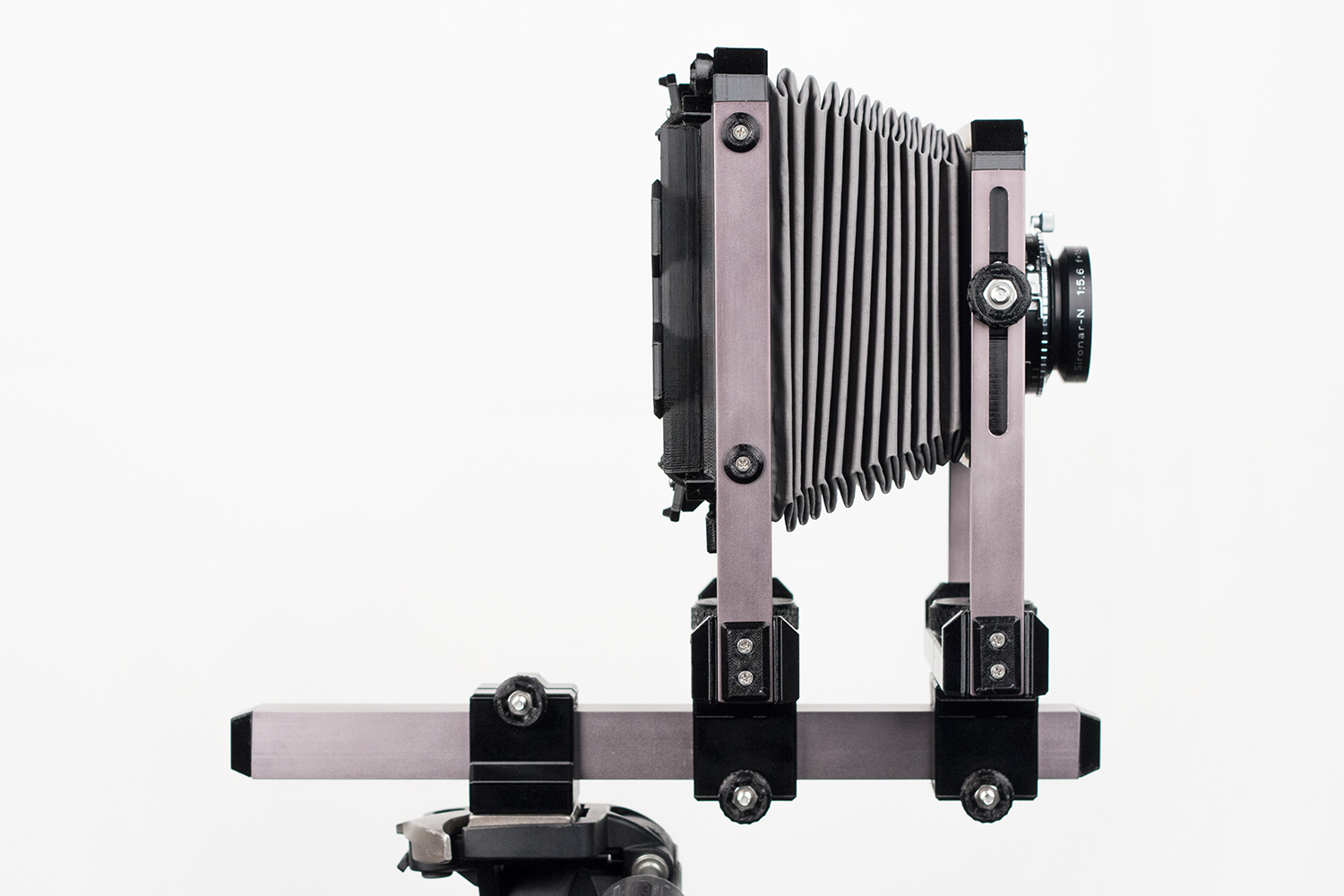

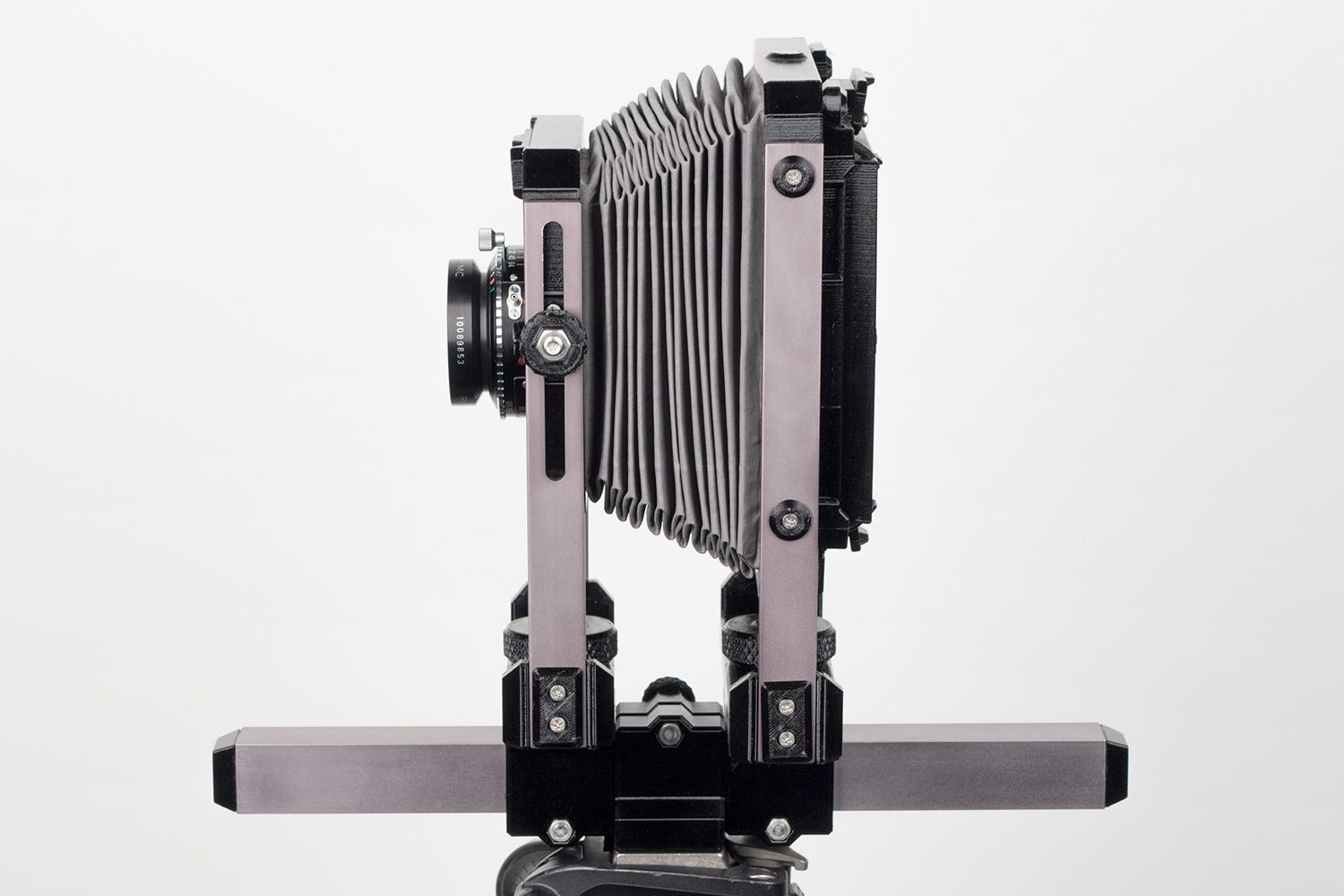

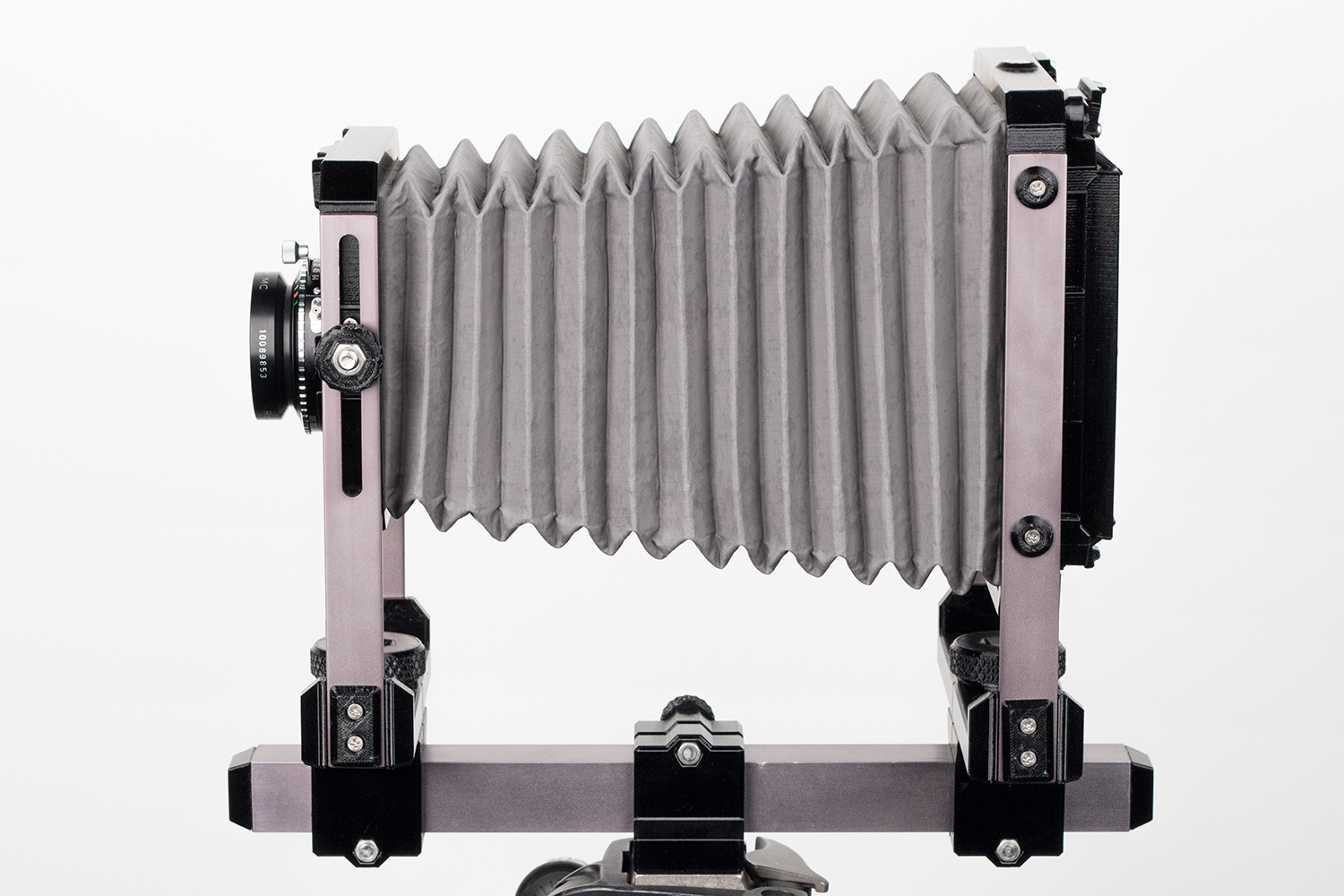

Standard 4x5 Side View
